ClimbingBASE REIMAGINED:
GREATER FLEXIBILITY IN FAÇADE GREENING

The further developed ClimbingBASE opens up new possibilities for façade greening. In addition to load transfer via point foundations directly into the ground, the product can now also be installed in a wall-mounted configuration with load transfer via brackets. This gives ClimbingBASE greater flexibility for both planning and execution. As a climbing structure made from stainless steel, the product meets the highest standards of functionality and fire protection. Particularly relevant for planning purposes: a structural system assessment is available for ClimbingBASE.
The Key Innovations:
Load transfer via brackets or point foundations
High standards of functionality and fire protection

Structural system assessment as a reliable basis for planning

Product Features ClimbingBASE
Meets the highest standards of functionality and fire protection
Elegant appearance combined with excellent corrosion resistance through high-quality stainless steel components
Simple push-through installation
Vertical support rods made from circular hollow sections
Load transfer via brackets or point foundations
RWTH, Aachen
RWTH, Aachen
NeckarPark, Stuttgart
NeckarPark, Stuttgart
Leuze, Unterlenningen
Leuze, Unterlenningen
Previous
Next

THE FAÇADE IN FOCUS: REQUIREMENTS & DESIGN.

Structural Prerequisites

ClimbingBASE in its standard configuration is suitable for the following conditions:
Insulation thicknesses of up to 350 mm
Greening heights of up to 15 m
Building class 4
Plant load classes 1 to 4
Anchorages in concrete and solid masonry
Planning and Design Advantages
Configurable to suit any wall construction
High greening heights with a minimal number of anchorage points
Cost-effective solution for façade greening
Suitable for both large-scale and linear greening configurations
High degree of flexibility in plant selection
Structural system assessment available for reliable planning

TECHNICAL INFORMATION
ClimbingBASE

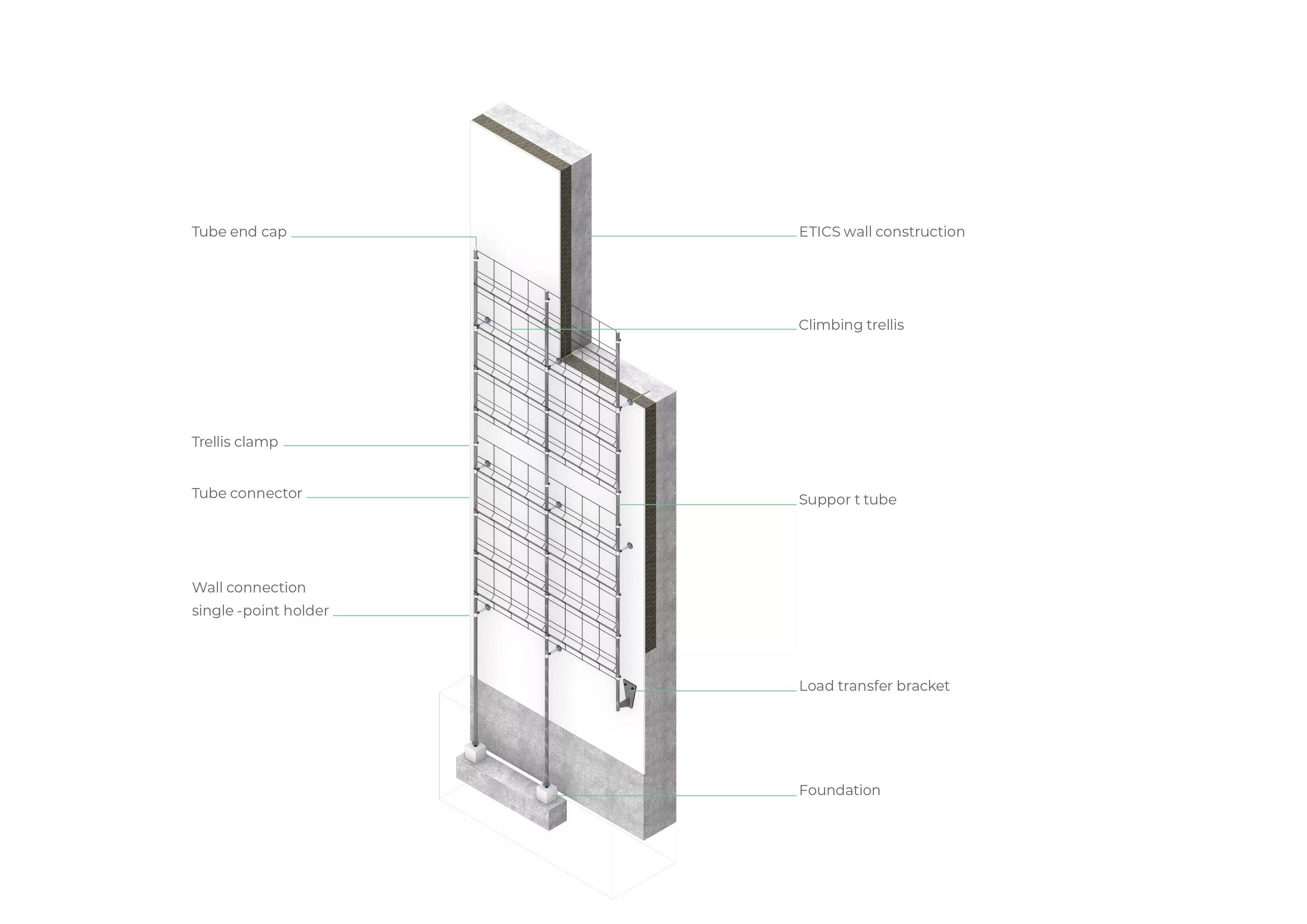

System Build-Up with All Components

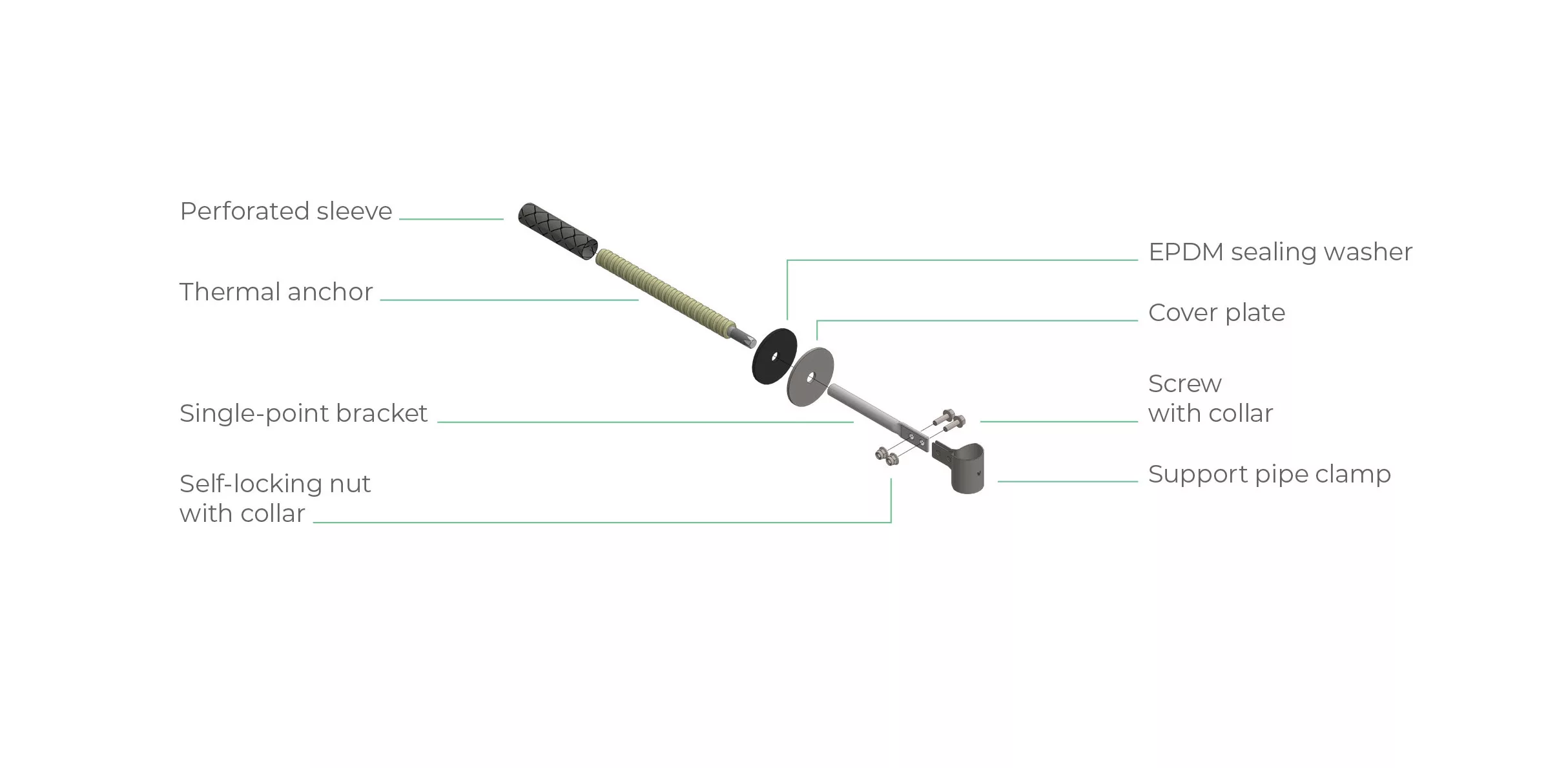

Single-point bracket
Single-point holder of the ClimbingBASE with thermal anchor, mesh sleeve, sealing washers, screws, nuts and support tube clamp.

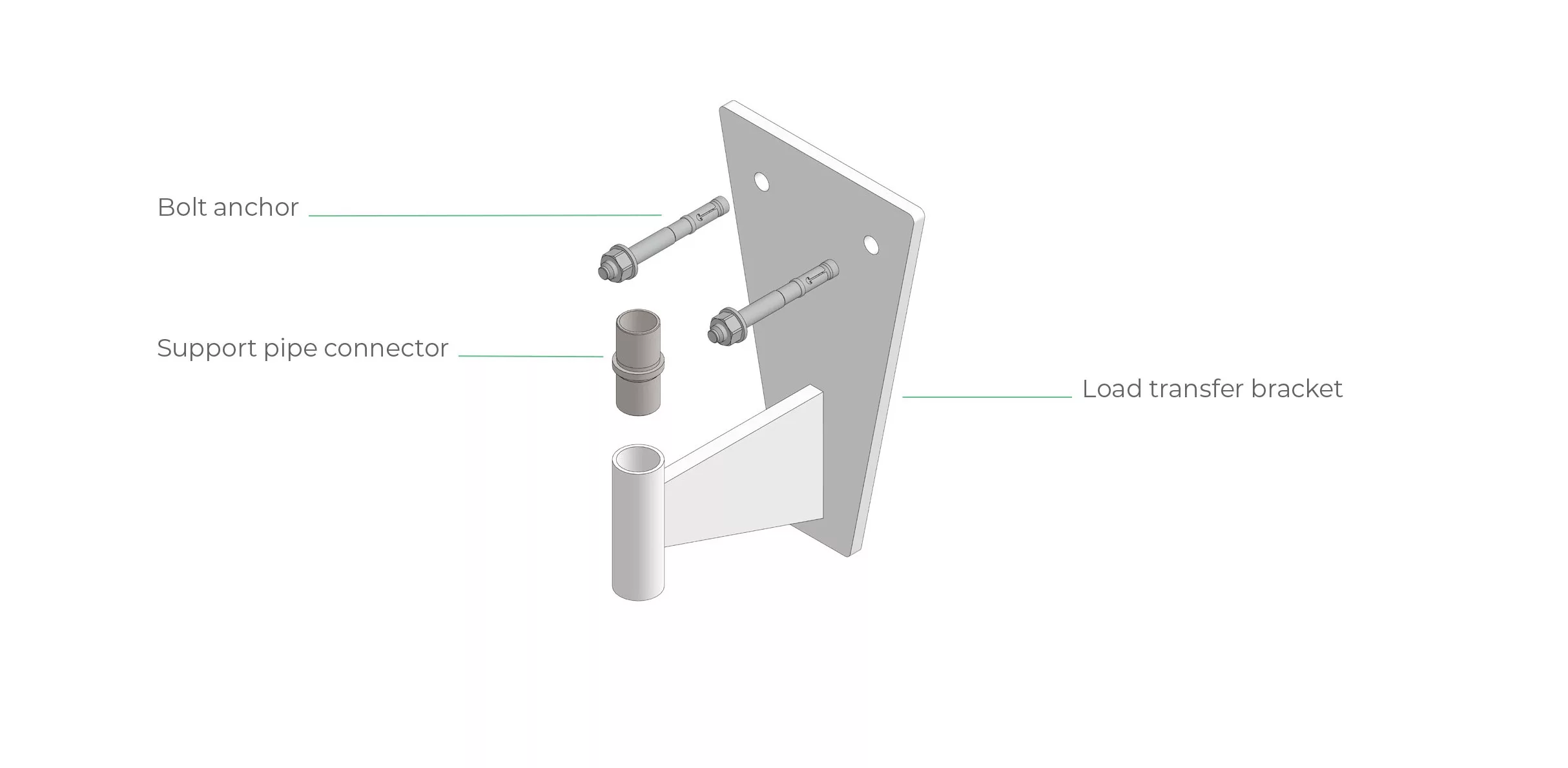

Load transfer bracket
Load transfer bracket of the ClimbingBASE with bolt anchors and support tube connector.

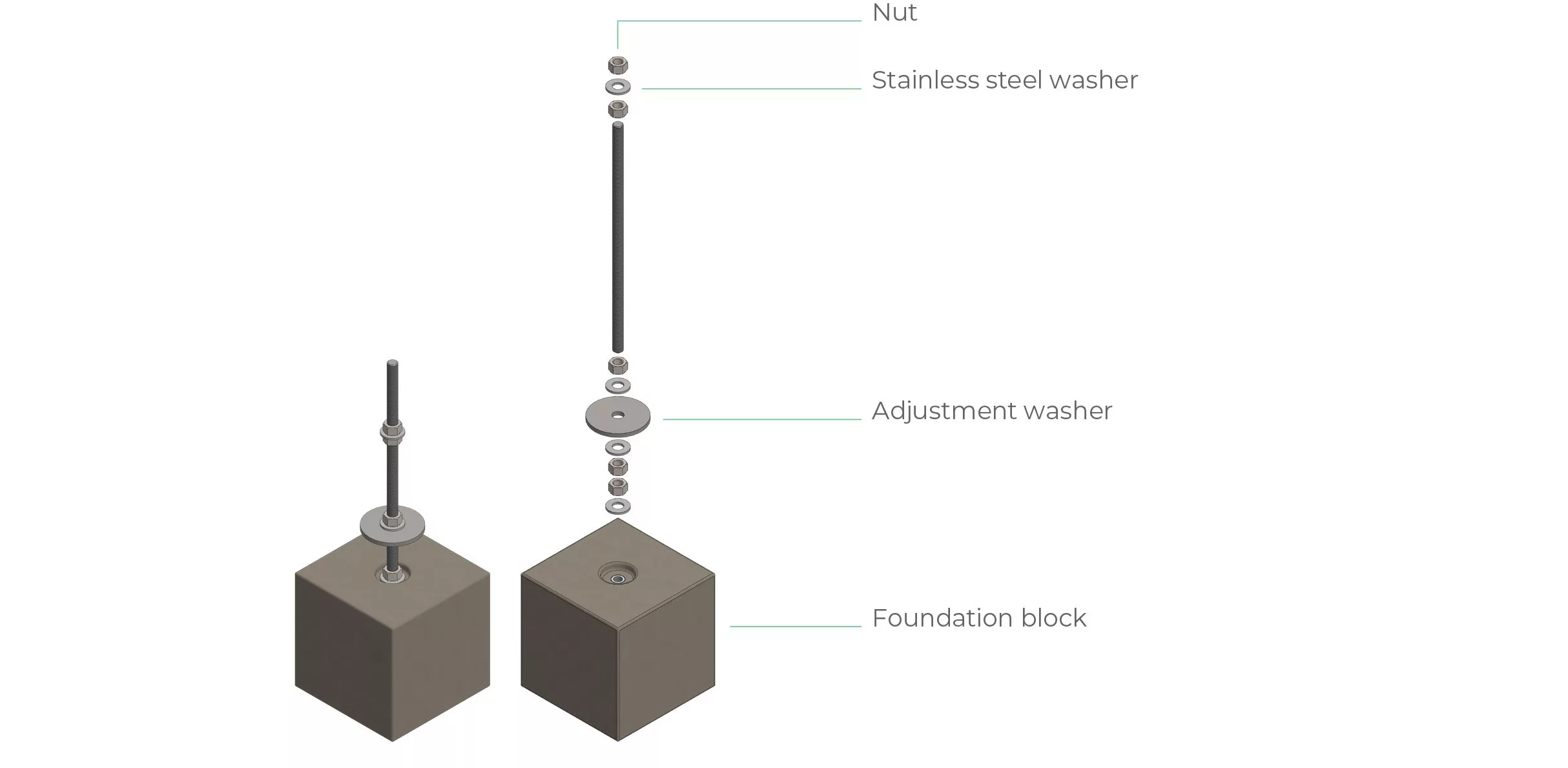

Point foundation

Point foundation of the ClimbingBASE with foundation block, threaded rod, adjustment washer, stainless steel washers and nuts.

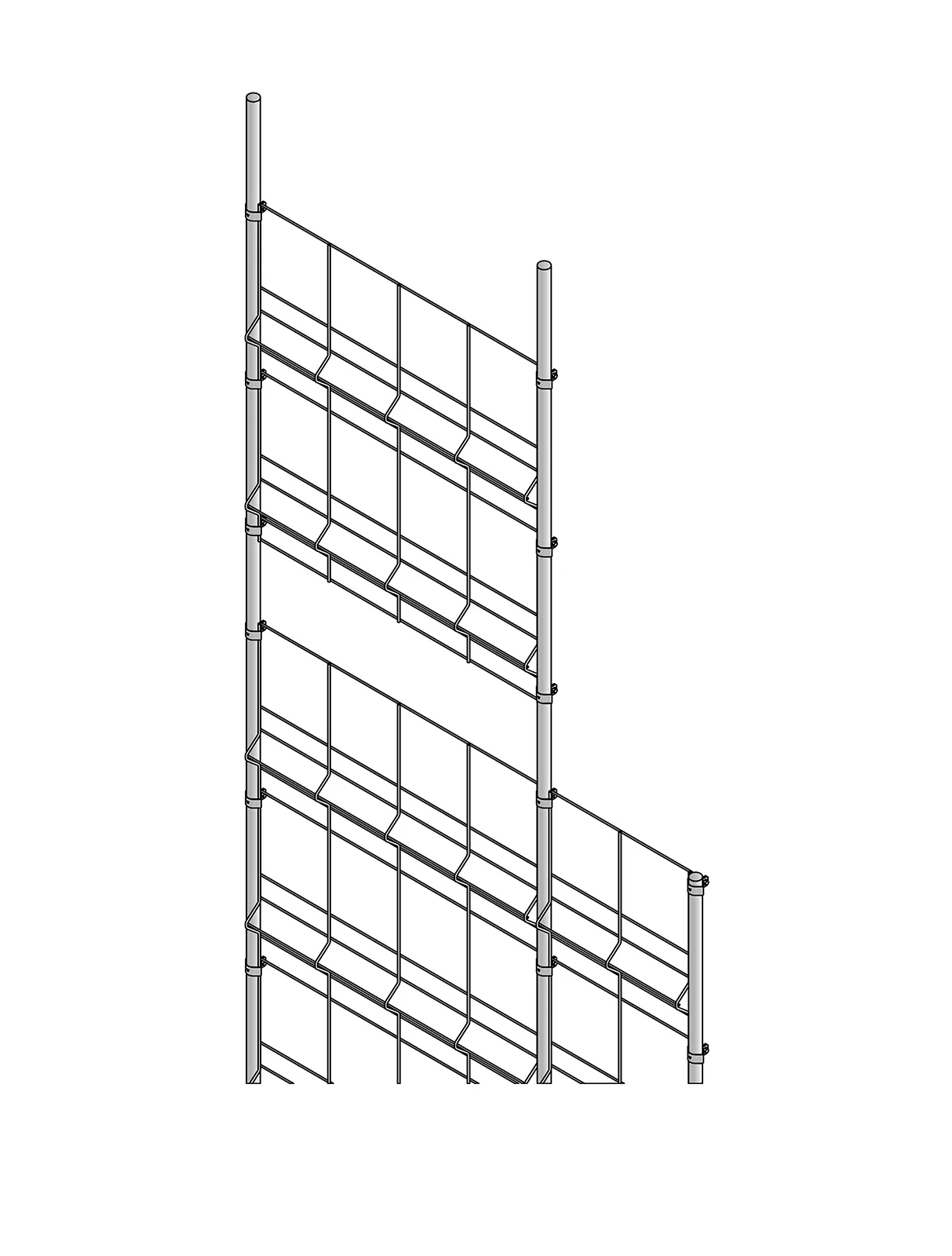

Trellis format: 965 x 2000 mm
Material: Stainless steel 1.4301, pickled and passivated


Trellis edge folding for increased load capacity and improved plant retention.

Gitterformat der ClimbingBASE mit vertikalen Rohren und angeordneten Rankgittern.

PLANTS & MAINTENANCE –
 THE BASIS FOR GREEN FAÇADES.

The right choice of plants and a coordinated maintenance approach play an important role in the development and appearance of green façades. Which plants are suitable depends, among other things, on the location, orientation, system design, water supply and maintenance concept.

At Vertiko, we combine experience in façade technology with specialist knowledge of plant selection. This creates façade greening solutions that bring functional requirements and design possibilities together.

Akebia quinata
Five-leaf akebia

Aristolochia macrophylla
Pipevine

Celastrus orbiculatus
Oriental bittersweet

Clematis montana
Mountain clematis

Fallopia baldschuanica
Russian-vine, Silver lace vine

Lonicera henryi
Henry’s honeysuckle

Vitis coignetiae
Crimson glory vine

Wisteria floribunda
Japanese wisteria

OUR PLANT RECOMMENDATIONS –
BASED ON BUILDING TYPE, FAÇADE & ORIENTATION.

A south-facing slope or a shaded north wall, a single-storey office building or a large industrial hall – just as building types, locations, and weather conditions vary, so do our plant recommendations for your ClimbingSYSTEMS. The planting scheme on this page provides an initial overview of different growth heights and spread patterns. Our experts offer personalised advice on plant selection and maintenance to ensure a healthy, long-lasting green façade.

Find additional product information for ClimbingBASE in our download section.
